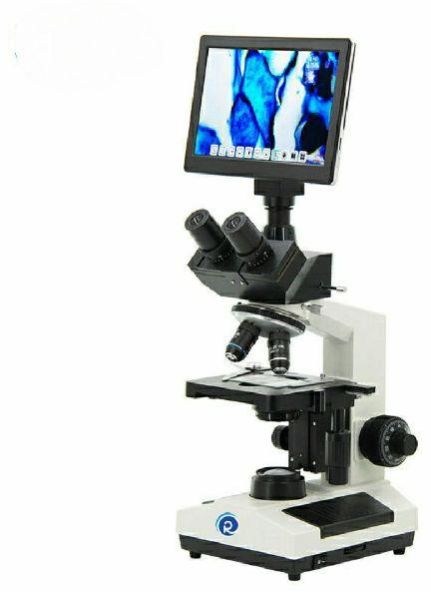

Radicon-Trinocular Co-axial Research LCD Microscope (Premium 4000 RLCD)

Business Type	Manufacturer, Supplier
Observation Head	Trinocular 30˚, 360˚ rotatable, with interpupillary and diopter adjustment.
Magnification	40x to 1000x
Stand	Sturdy and Durable pressure Die cast Aluminium stand
Click to view more

Preferred Buyer From

Location

Worldwide

Product Details

Mechanical Stage

Co–axial Low Drive Double Plate Mechanism System Travel On Ball Bearing Guideways

Focusing System

Co-axial Coarse & fine Mechanism System with Ball Bearing Guideways

Illumination

The illuminator incorporated 3W LED lamp

Quadruple Nosepiece

A precision mechanism ensures the accuracy and optical alignment of the system

Camera Sensor

5MP color CMOS Camera sensor, size 1/2.5 inch (4:3)

Effective Resolution

2592 H x 1944 V

Video and Frame rate

640x480 @ 30fps , 1280x720@ 15fps

Pixel Size

2.2µm x 2.2µm

Color Depth

12-bit, on-chip

Pad Size

220*170*20mm

Software Function

Image, Video, Measurement

Shutter Type

Electronic Rolling Shutter

SD Card

Support

Power Supply

DC 5V 2A

Optional Output

HDMI

Model

(Premium 4000 RLCD)

Brand

Radicon

Features:

RADICON - DIGITAL TABLET is the smart digital microscope tablet camera equipped with 5MP color Camera and 9.7 Inches Tablet.
It is developed specifically for microscopy applications.
